Toughened Glass for Sanitary

Toughened glass for Sanitary usage, not only request the glass should be water-proof, but also need to with features of never fade-off ink and UV resistance. Saida Glass offer extensive custom glass parts, help you to gain more market share with competitive price and fine quality.

Benefit of Sanitary Toughened Glass

UV Protection

With high temperature printing ink, the color will not be fade off or dis-colouration. The ink can be last as long as the glass itself. Typically tempered glass has an SPF of around 16 as it absorbs 65% of UV rays.

Safety

Unlike broken ordinary glass shatter into sharp shards of glass, when safety toughened glass is broken, the glass shatters into small and even pieces, which aren’t sharp or jagged, so there is less chance of injury when cleaning it up.

Strength

Compared with a standard glass of the same size and thickness it is three to five times stronger, which mean it requires huge amounts of force to break.

High Impact resistance

Like we mentioned above the glass is stronger and more durable, and it’s also more resistant to impact compared with ordinary glass. This makes it a great choice for many different situations, whether its in the home or in commercial properties or used in society.

Ease of Cleaning

Smooth surface can resist external dust accumulation and stains, easy to be clean.

Heat Resistant

Tempered glass can withstand temperatures of up to 250°C, with high thermal stability.

Saida Glass Advantages

Sanitary glass, available in various sizes, shapes, edge treatments, glass material and colors, give you extra efficiency and protection while supervising your active process.

Never fading-off ink under high humidity environment

Glass surface hardness ≥ Mosh 6H

Impact resistant level ≥ 08, depends on size

High clarity and transparency with high-end look

Available minimum size diameter 20mm

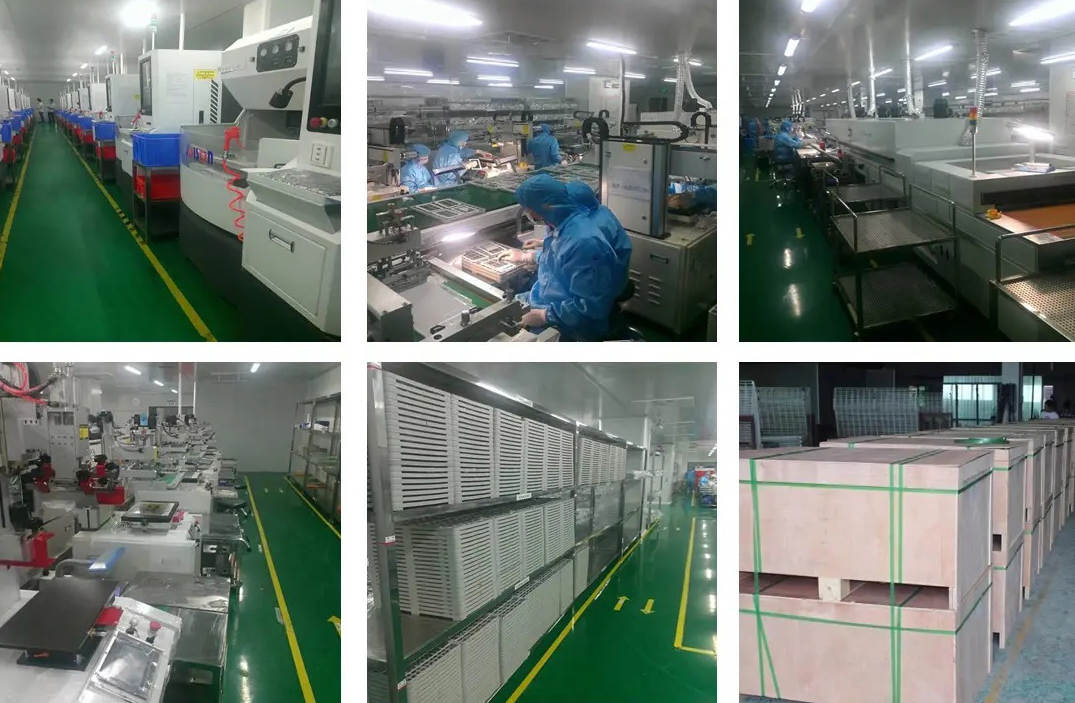

Glass Production Process

Glass cutting - CNC Profiling -Drilling (if needed) - cleaning & inspection - tempering & high temperature printing - cleaning &inspection - packaging

Item	Description
Raw Material	Tempered clear, ultra clear glass
Size	Minimum size 19mm and customized
Thickness	Generally 2~4mm, according to the design
Edge available	seams, corner dubbing, circle or flat ground, pencil, and polished etc
Structure	solid, holes etc.
Printing	ceramic printing(high temperature printing), digital printing...
Surface Treatment	Etching, anti-fingerprint, tinted, color, easy-cleaning coating ...

1.Do Saida Glass's certifications qualify tempered glass for import into the EU and US?

Answer:Yes — all tempered-glass comply with EN 12150 (EU) , ASTM C1048 (USA), AS/NZS 2208 (Australia) and CAN/CGSB-12.1-M90 (Canada), backed by ISO 9001:2015, ISO 14001:2015. Under EN 12150-1, a 50 mm × 50 mm break test square must yield 40–60 uniform small fragments, and fully tempered glass carries a surface compressive stress of at least 69 MPa; ASTM C1048 sets the same 69 MPa minimum surface compression for fully tempered glass. Saida's 100% full visual inspection plus random dimensional sampling supports the test reports EU/US customs and end customers ask for.
2.What thickness range and dimensional tolerances can Saida process?

We process glass from 0.2 mm to 19 mm thick, hold a dimensional tolerance of ±0.1 mm to ±0.5 mm depending on thickness and process, and handle a maximum panel size of 86’’. Ultra-thin 0.2–1.8 mm work (smartwatch covers, camera lenses, miniature touch panels) runs on dedicated furnaces with the flatness control display-grade glass requires; 2–3 mm is the standard consumer-electronics band, 4–6 mm suits industrial HMI/ATM panels, and 8–19 mm covers furniture, shower and railing glass.
3.Is all cutting, drilling and edge work done before tempering, and do you have the full CNC suite in-house?

Yes — every mechanical process is completed in-house before tempering, because post-temper cutting would cause instant spontaneous breakage. Saida runs precision CNC cutting with tolerance ≤ ±0.1 mm, special-shaped drilling, irregular notching, and edge finishing in flat, round, pencil, bevel and step profiles, all prior to the tempering furnace. This end-to-end pre-process capability is the single most important thing to confirm with any tempered-glass supplier, and it is fully covered here.
4.What mechanical strength can we expect from Saida tempered glass?

Tempered panels deliver roughly 4–5× the strength of annealed float glass of the same thickness: tensile strength 120–200 MPa, compressive strength above 600 MPa, and thermal shock resistance up to a 200 °C sudden temperature change. The dominant reason to specify tempered glass is the failure mode: on breakage it crumbles into small, rounded, blunt fragments rather than sharp splinters, which is why it is the required safety material for any human-contact application.
5.Which surface treatments and printing does Saida offer?

AR (anti-reflective), AG (anti-glare), AF/AS (anti-fingerprint/anti-smudge), mirror, ITO/FTO conductive coating and EMI-shielding bonding, plus standard silkscreen and ceramic DIPtech printing.
6.What is Saida's production capacity and typical lead time?

Annual capacity is 30,000,000+ pieces across 10+ automated and semi-automated lines, with a standard lead time of 15-20 days and flexible EXW, FOB, CIF or DDP shipping.
7.Can Saida work as an OEM/ODM partner and share QC documentation?

Yes — OEM and ODM are the core business model, and Saida provides spec sheets, original inspection test data and break-test records on request.
8.Which markets does Saida already serve?

Primary export markets are North America, Europe, Oceania and Asia, with a service network in 30+ countries.

Contact us

Usages

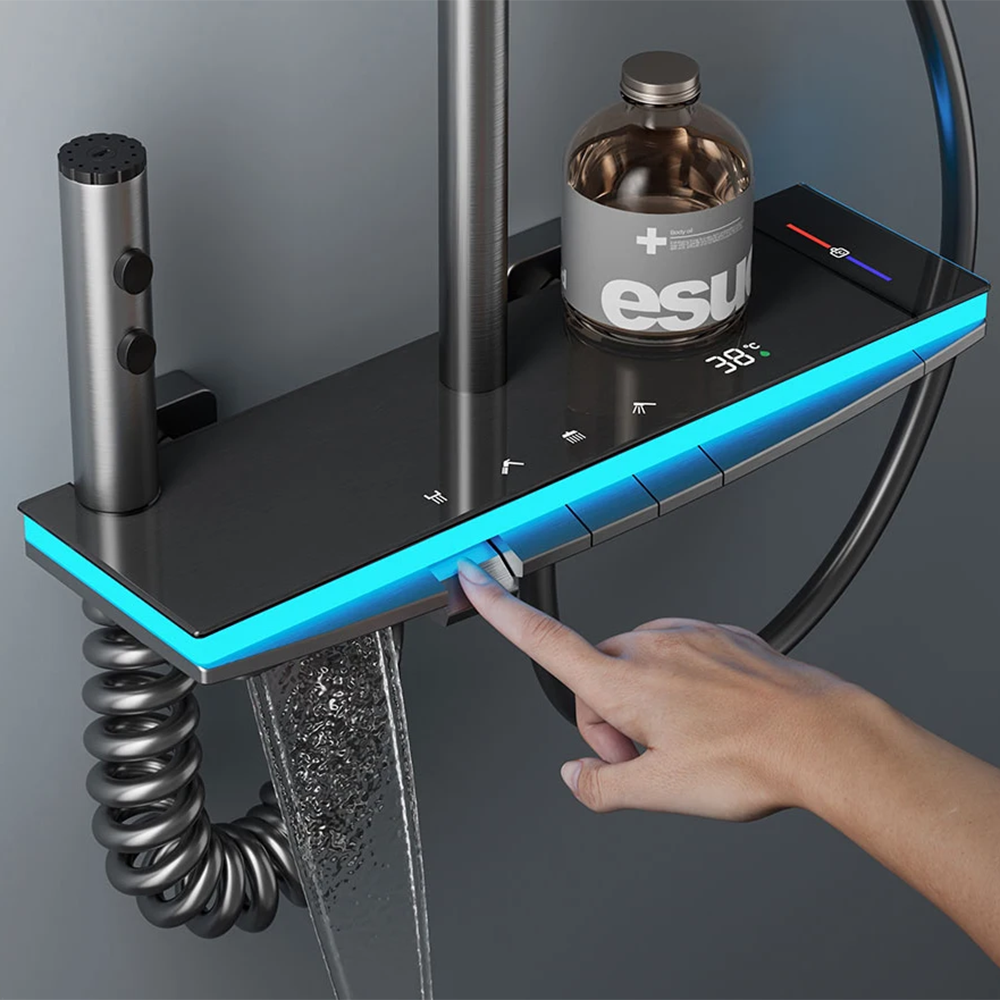

Thermostatic shower

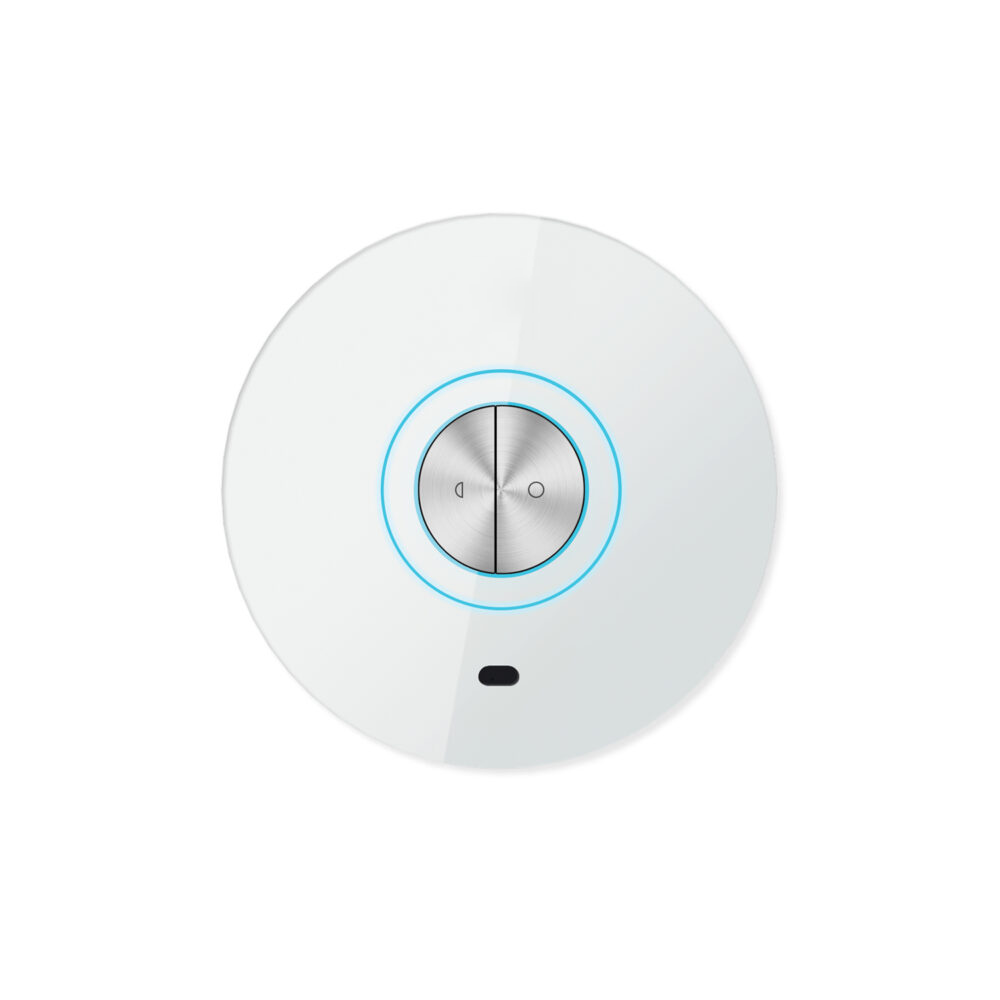

Flush valveflush controls

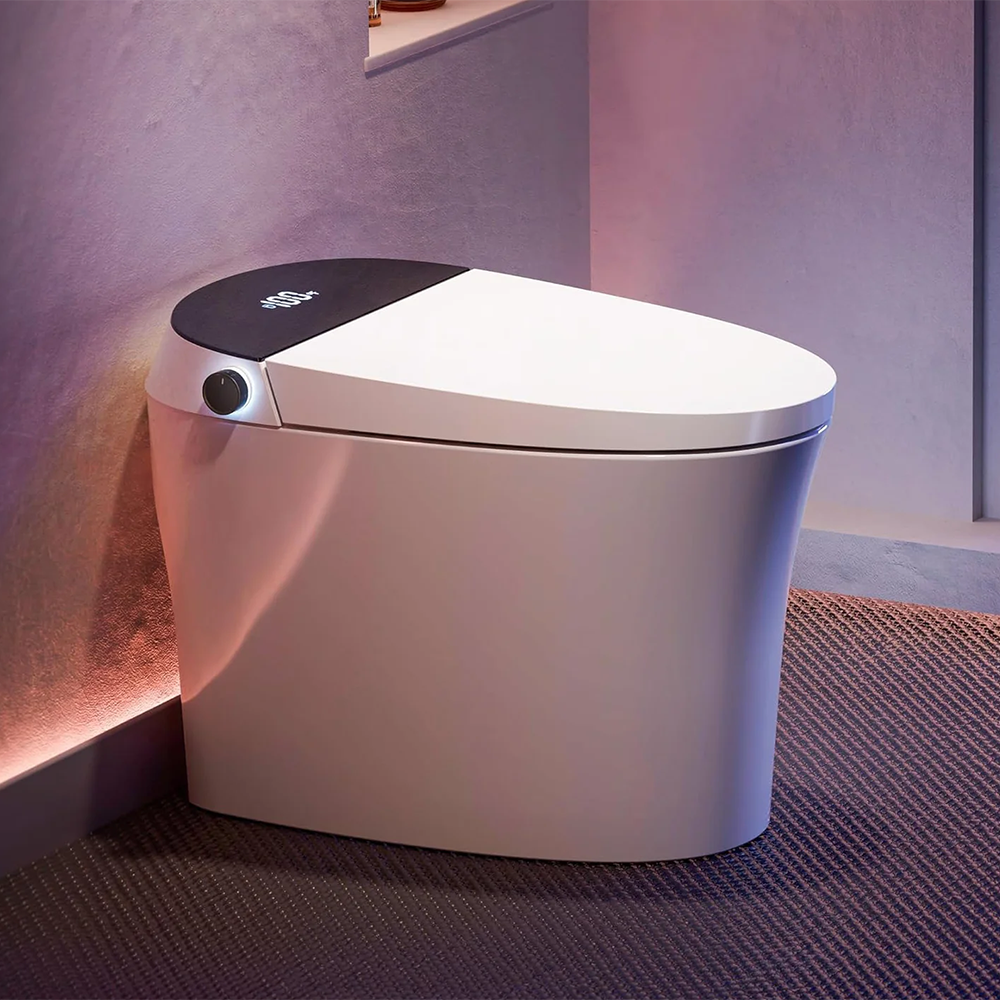

Smart toilet

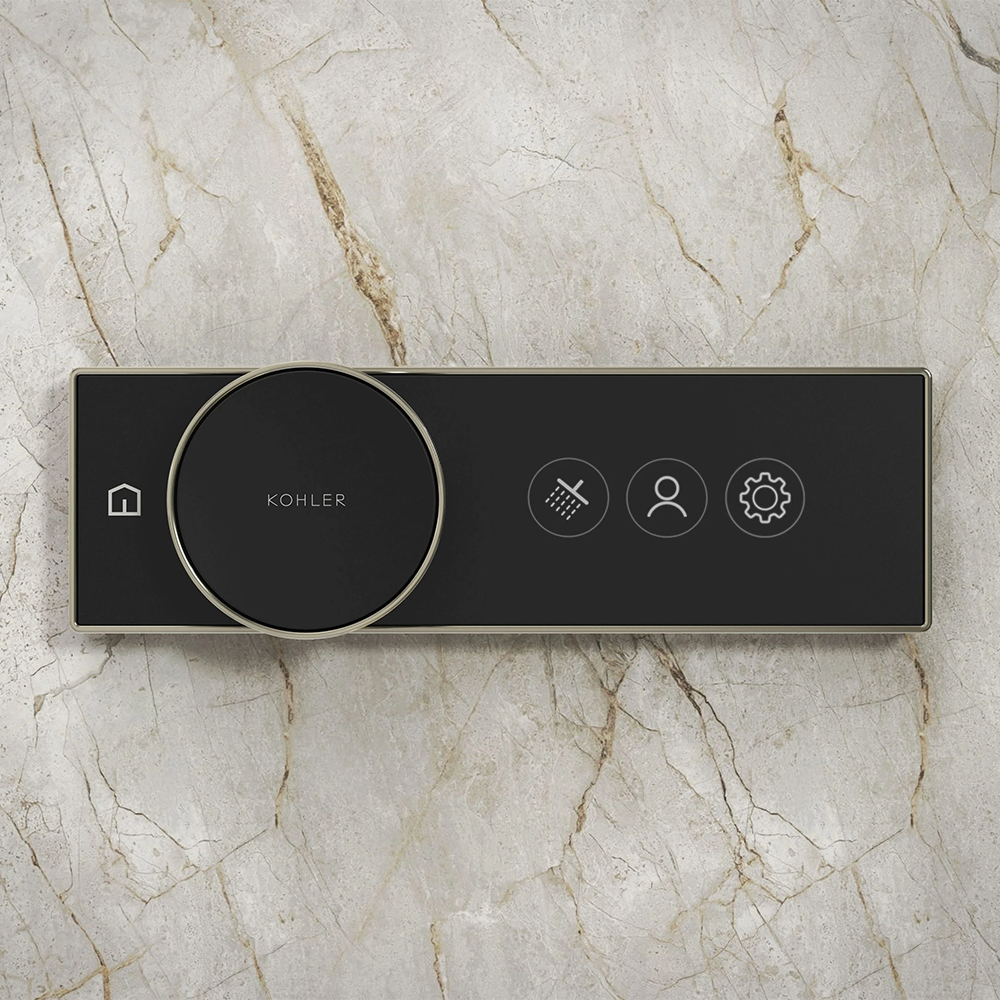

Water climate control

Other Application

At Saida Glass, we closely team up with you to pinpoint your market challenges and project essentials. Our adeptness in custom glass, especially thin film optical coatings, along with manufacturing prowess, differentiates us in the field.
