Precision Glass Drilling: CNC Machining and Laser Technologies

In advanced glass fabrication, creating clean, precise, and reliable holes is a fundamental yet critical challenge. The chosen drilling method directly impacts structural integrity, aesthetic quality, and functionality. Today, two leading technologies dominate this space: established CNC drilling and innovative laser drilling. Each offers distinct advantages for different applications.

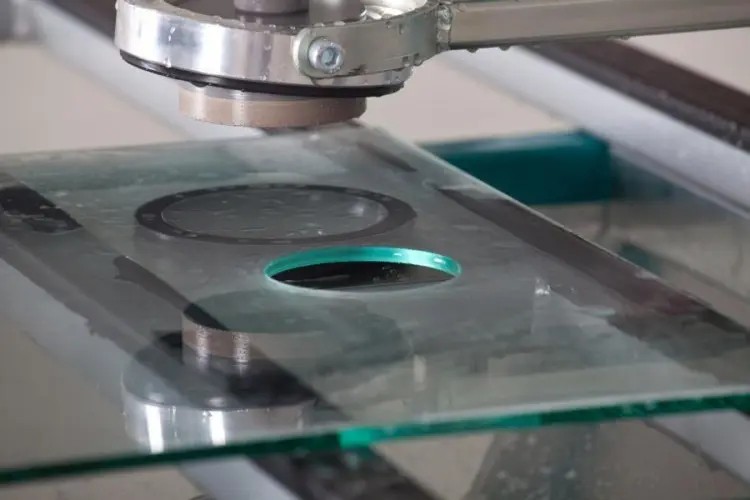

glass-drilling-main-description-and-accompanying-image

Core Drilling Methods: CNC vs. Laser

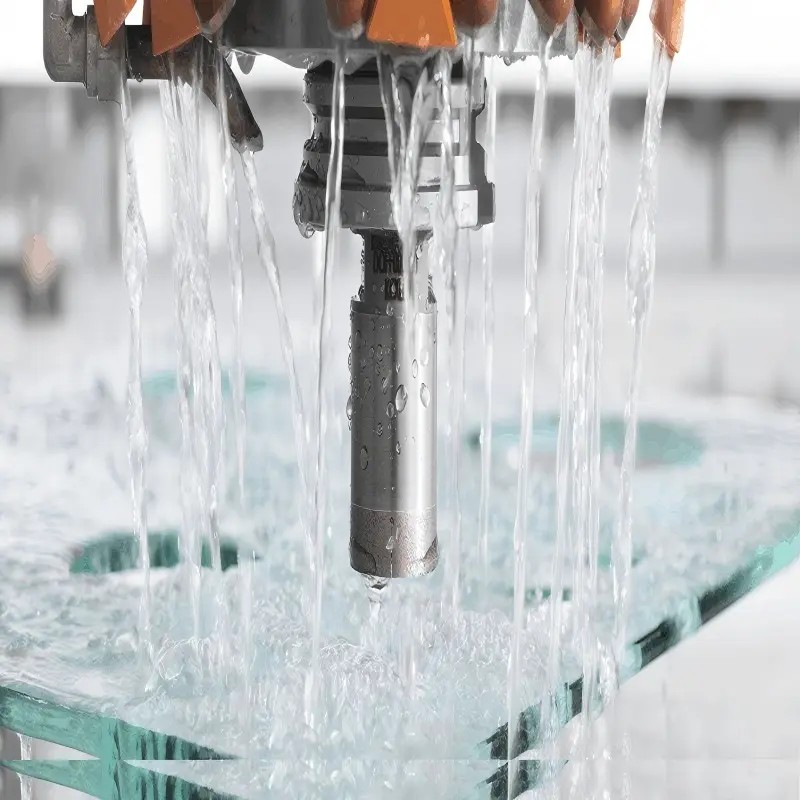

1. CNC (Computer Numerical Control) Drilling

CNC drilling is a subtractive, mechanical process. It operates by using a high-speed spindle to drive a diamond-coated drill bit or core tool, grinding away the glass material with exceptional control.

Key Advantages & Characteristics:

• High Precision & Consistency: Excellent dimensional consistency, suitable for large-batch production.

• Strong Adaptability: Capable of handling large-format glass (e.g., up to 1200mm x 900mm) and a wide range of thicknesses, from thin display glass to thick architectural panels.

• Further Processing: leaves a mechanically ground surface ideal for further finishing
Technical Specifications:

• Typical Minimum Hole Diameter: Approx. 1.5 mm (depending on tooling and glass type).

• Dimensional Tolerance: Typically within ±0.1 mm

• Glass Thickness Range: Extremely versatile, commonly processing materials from 0.55mm up to 19mm

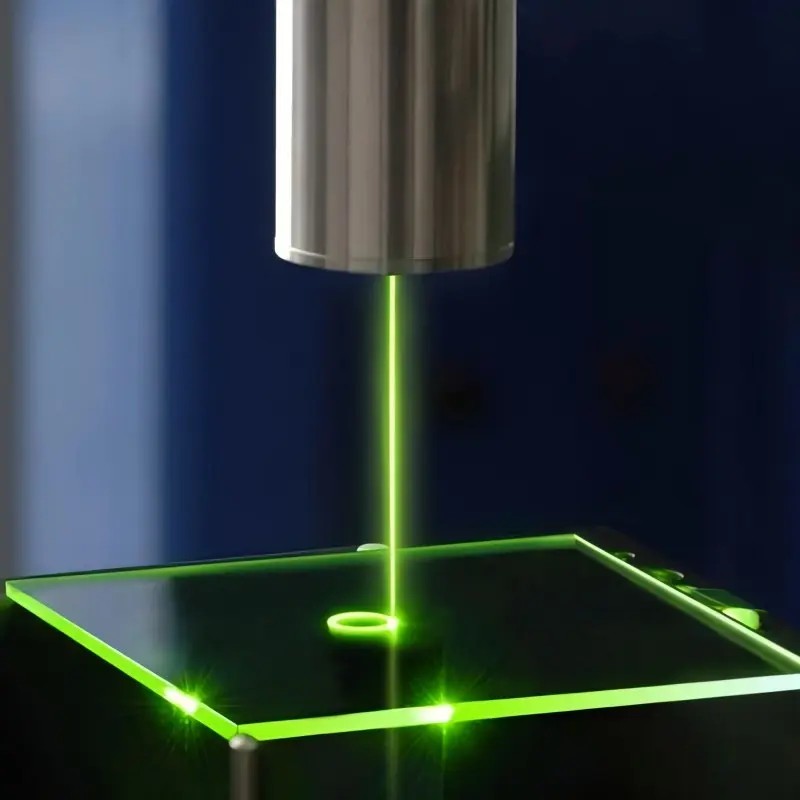

2.Laser Drilling

Laser drilling represents a non-contact, thermal approach. Modern systems typically use short or ultra-short pulse lasers to focus intense energy onto a microscopic point on the glass surface, vaporizing or modifying the material.

Key Advantages & Characteristics:

• Non-Contact Processing: Eliminates mechanical stress and tool wear, significantly reducing the risk of micro-cracks and chipping, providing exceptional edge quality.

• Flexibility for Complex Geometries: Ideal for complex patterns with no tool changeover downtime
Technical Specifications:

Minimum Achievable Hole Diameter: Can produce remarkably small holes down to 0.3mm in diameter, with some systems capable of even smaller features.

• Dimensional Tolerance: typically within ±0.01mm to ±0.03mm, due to the lack of tool wear.

• Typical Glass Thickness Range: Most effective for thin to medium thicknesses (0.1mm to 10mm)

Technology Comparison

Feature	CNC Drilling	Laser Drilling
Process Type	Subtractive (Grinding)	Non-Contact (Vaporization/Modification)
Key Advantage	High precision for standard shapes, handles large formats	Non-contact, excellent edge quality, supreme flexibility for micro-holes & complex shapes
Min. Hole Diameter	~1.5 mm	Down to 0.3 mm
Typical Tolerance	±0.1 mm	±0.01 mm to ±0.03 mm
Suitable Glass Thickness	Thick (up to 19mm+)	Thin to Medium (up to 10mm)
Edge Quality (Chipping)	Requires polishing	Exceptional (Minimal chipping/micro-cracks)
