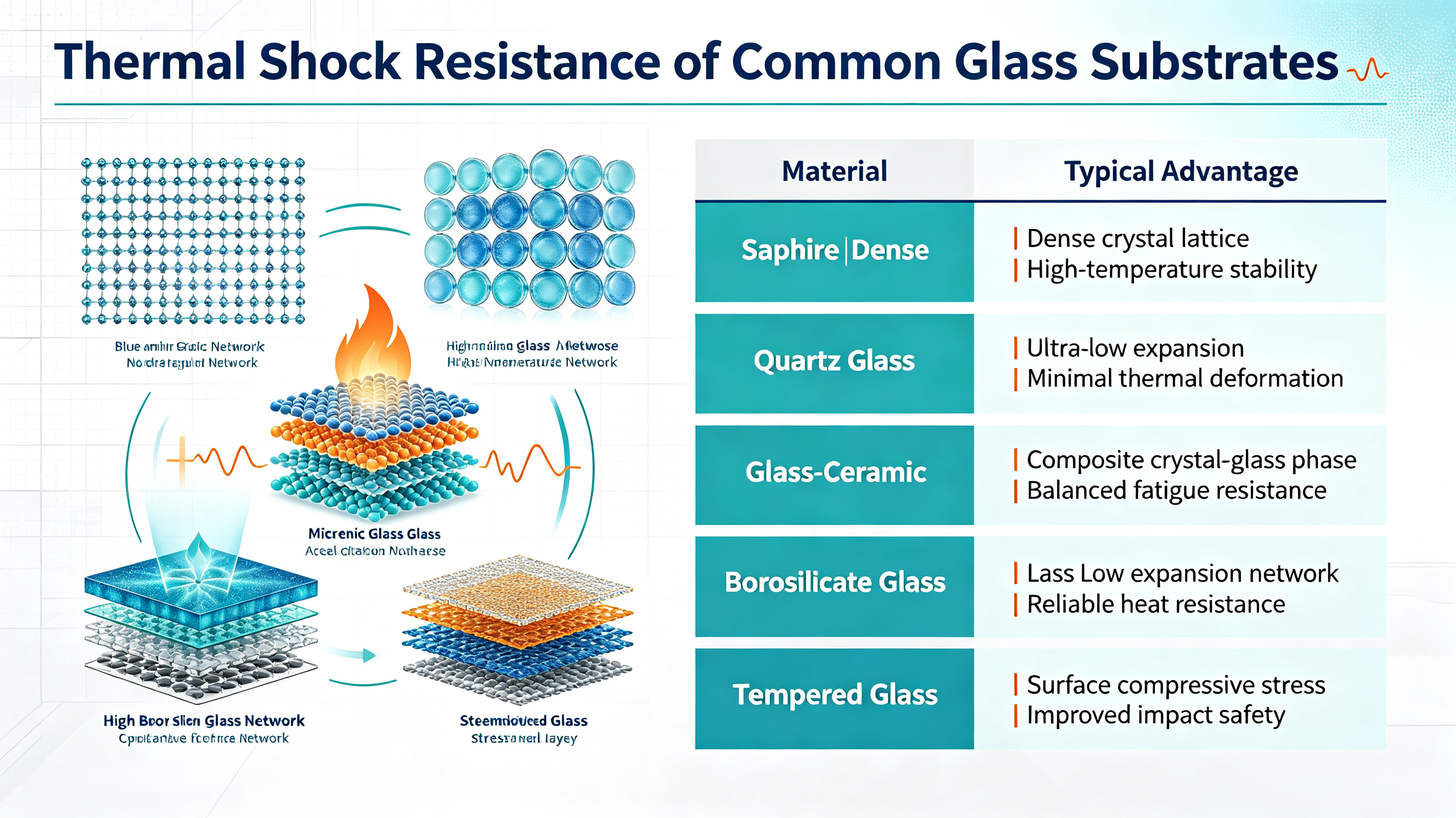

Thermal Shock Resistance of Common Glass Substrates
Thermal shock resistance is the ability to endure rapid temperature changes without fracturing. When a temperature gradient develops across a Glass part, differential expansion creates internal stresses. If these stresses exceed the material's tensile strength, cracking occurs. The lower the coefficient of thermal expansion (CTE), the less stress builds up, and the better the thermal shock performance.
The table below compares key properties and typical applications.
| Glass Type | CTE (/K) | Max Temp (°C) | ΔT Tolerance (°C) | Typical High-Shock Applications |
|---|---|---|---|---|
| Sapphire | ~5–6×10⁻⁶ | ~2000 | Extremely high | Missile domes, high-power LED substrates, spacecraft windows |
| Fused Silica | ~0.55×10⁻⁶ | ~1200 | >1000 | Astronomical telescope Mirrors, semiconductor furnace viewports, UV laser optics |
| Glass-Ceramic | ~0.15–3.3×10⁻⁷ | ~700–750 | ~700 | Cooktop panels, wood stove windows, telescope mirror blanks |
| Borosilicate | ~3.3–4.1×10⁻⁶ | ~300–350 | 160–230 | Laboratory beakers, pharmaceutical vials, thermal-shock-test chambers |
| Soda-Lime (tempered) | ~8.6×10⁻⁶ | ~250 | ~200 | Oven doors, architectural spandrel glass, touchscreen/LCD display |
- Fused silica stands out with its near-zero expansion, surviving red-hot-to-ice-water quenching.
- Sapphire offers unmatched high-temperature durability, while glass-ceramics are engineered for cooktop and fireplace duty.
- Borosilicate delivers reliable, cost-effective performance for lab and pharmaceutical use.
- Tempered soda-lime performs reasonably well for household ovens, but its annealed counterpart is fragile under thermal stress.
In practice, thermal shock resistance depends primarily on CTE, but thermal conductivity, fracture toughness, surface finish, and network chemistry all play significant roles.
Higher silica content generally improves performance, while alkali oxides weaken the structure and raise CTE.
Besides, surface flaws can drastically reduce effective strength, which is why tempering—introducing surface compression—remains a practical way to enhance resistance in otherwise modest materials.
