ITO and FTO Conductive Coating Glass

ITO,FTO Glass

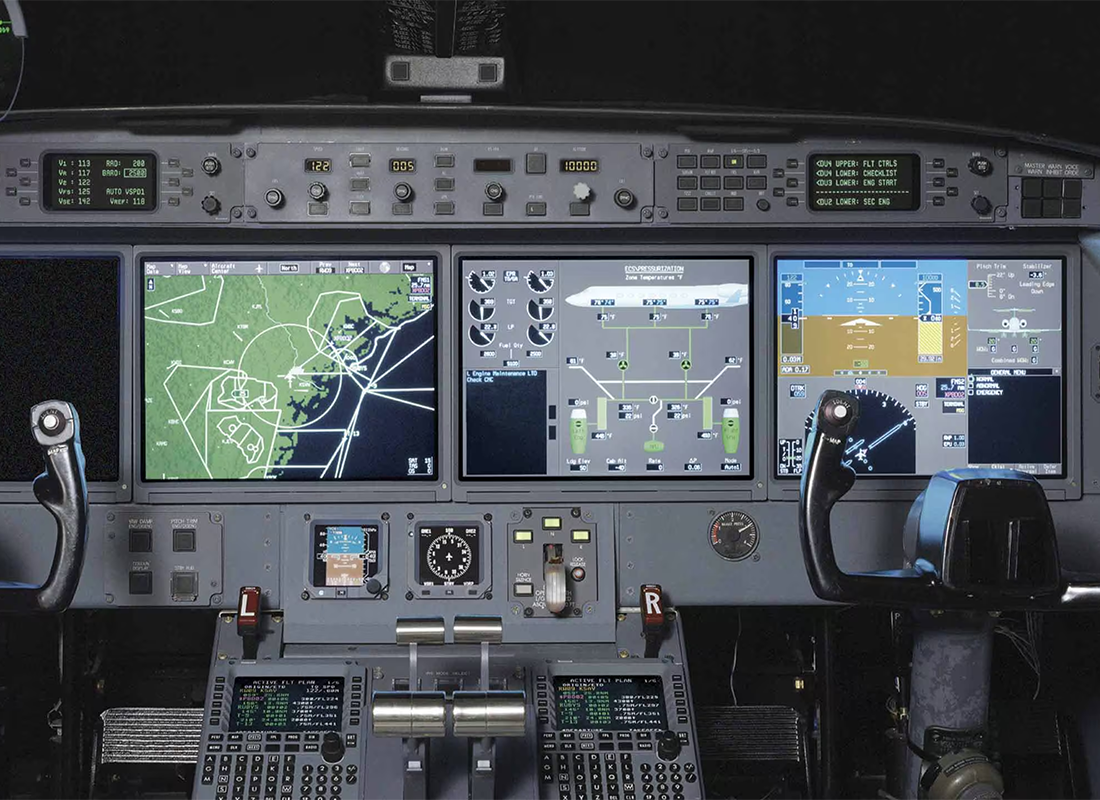

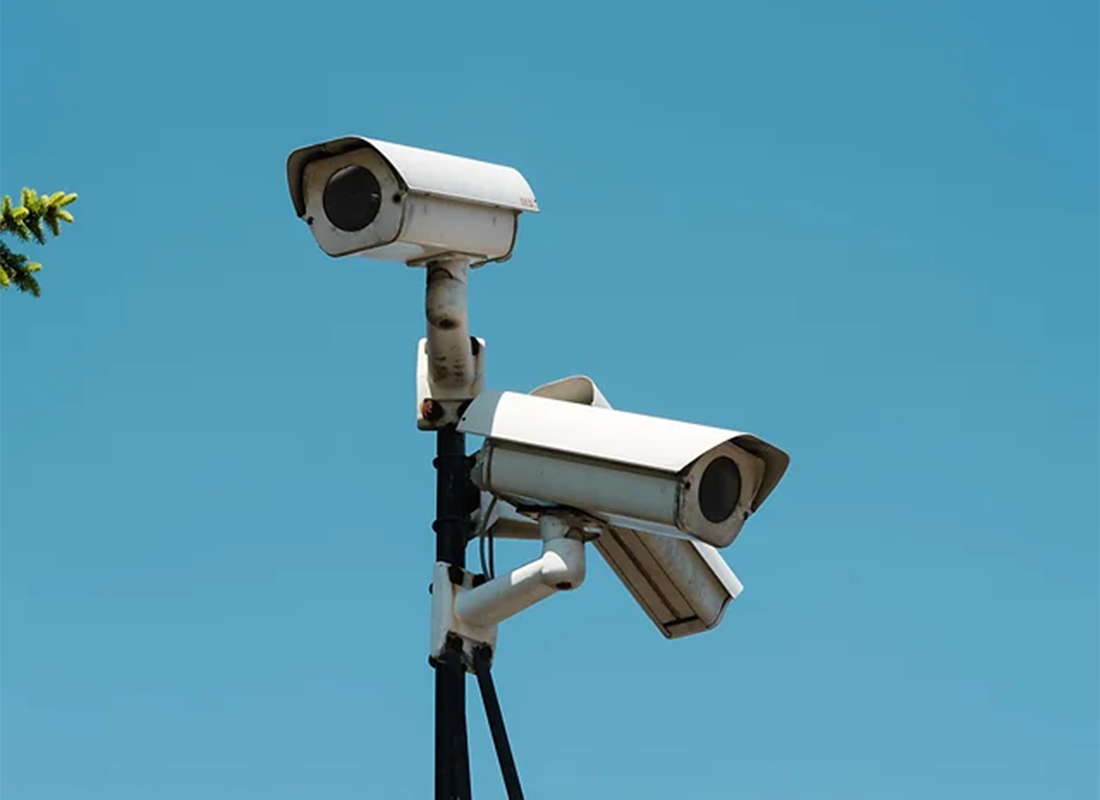

Saida Glass focus in the design and production of transparent conductive Indium Tin Oxide (ITO) glass, Fluorine-doped Tin Oxide (FTO) glass. With it’s excellent electrically conductive and high transmittance properties. It has widely used in many applications, including touch screen displays, electromagnetic interference/radio frequency interference shielding, heaters, Bio-samples, Electro-optical switching and static energy dissipation for sensors.

Saida Glass has a rich experience on custom conductive glass with Busbar, AR coating, Index-matched ITO on different substrates. We would happy to work out any specific requirements you may have for your particular application.

Glass Material Options

It all starts with the basic element, the glass. Each substrate has unique and specific qualities to match the project’s application and specification. With our innovative engineering staff and expert production teams, surely to meet your custom engineered optics solutions whether prototype or a production run. Our in-house capabilities allows Saida Glass to integrate coatings and glass, providing a cost-effective, turnkey approach optimized for your project. From basic glass components to the most complex devices. Saida Glass is your Best Glass Solution Partner.

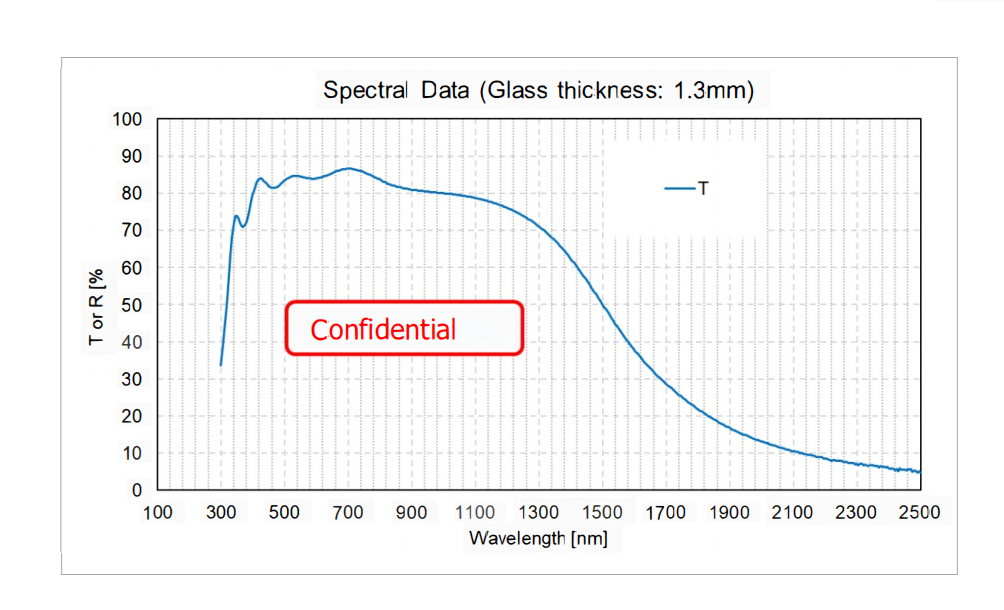

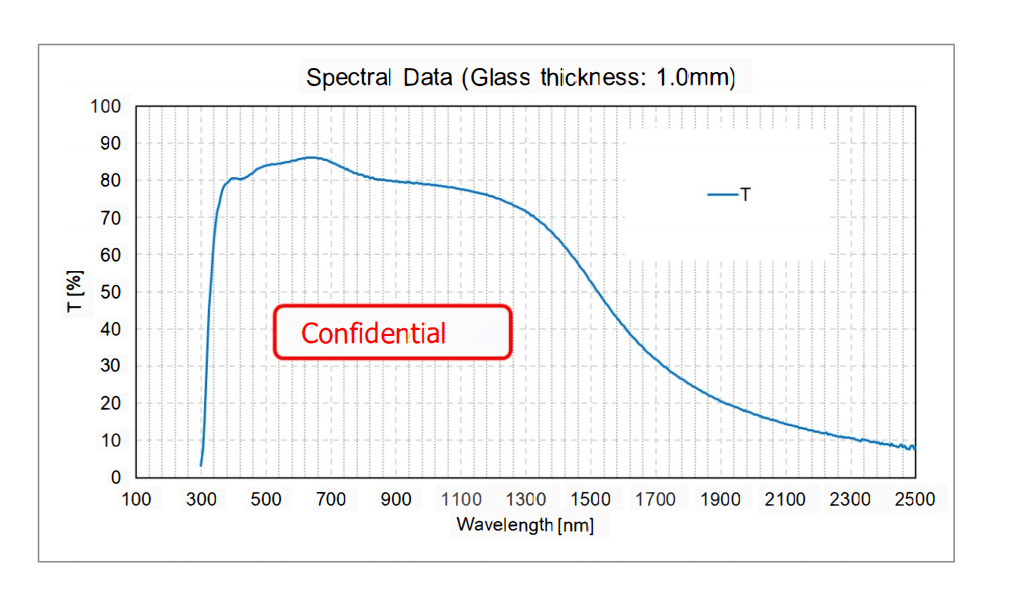

FTO glass

Resistance

TEC 8

TEC 10

TEC 15

Sheet Resistance

6 - 9 Ω/square

11 - 13 Ω/square

12 - 14 Ω/square

Glass thickness

2.2mm

3.2mm

1.1mm/1.3mm/

1.8mm/2.2mm/3.2mm

Max. size

2000x1620x2.2mm

2000x1620x3.2mm

1400x1100x1.1mm

1900x1650x1.8mm

2000x1620x2.2mm

Glass Type

Soda Lime

Soda Lime

Soda Lime Glass

Coating Thickness

600 nm±100

750 nm±150

400 - 450 nm±100

FTO Roughness

34.8 nm

45 nm

12.5 nm

FTO Transmittance

≥75%

≥82%

≥83%

Through Hole

Available

Shape

Square/Round/Rectangle/Irregular

Coating Method

CVD

CVD

CVD

ITO Glass

Sheet Resistance

5~20 Ω/square

20~50 Ω/square

50~100 Ω/square

ITO Glass Type

TN/STN

TN/STN

TN/STN

Glass thickness

0.7mm/1.1mm/Custom

0.7mm/1.1mm/Custom

0.7mm/1.1mm/Custom

Max. size

370x470x0.7mm

14x16inchx1.1mm

Etc.

370x470x0.7mm

14x16inchx1.1mm

Etc.

370x470x0.7mm

14x16inchx1.1mm

Etc.

Glass Type

Soda Lime Glass/Borosilicate Glass/Sapphire Glass/Fused Silica Glass/BK-7 Glass

Coating Thickness

300nm±50

65nm±10

25nm±5

Through Hole

Available

Shape

Square/Round/Rectangle/Irregular

Coating Method

Online/Vacuum sputtering/PVD

Online/Vacuum sputtering/PVD

Online/Vacuum sputtering/PVD

Optional

BusBar

AR coating

Index Matched

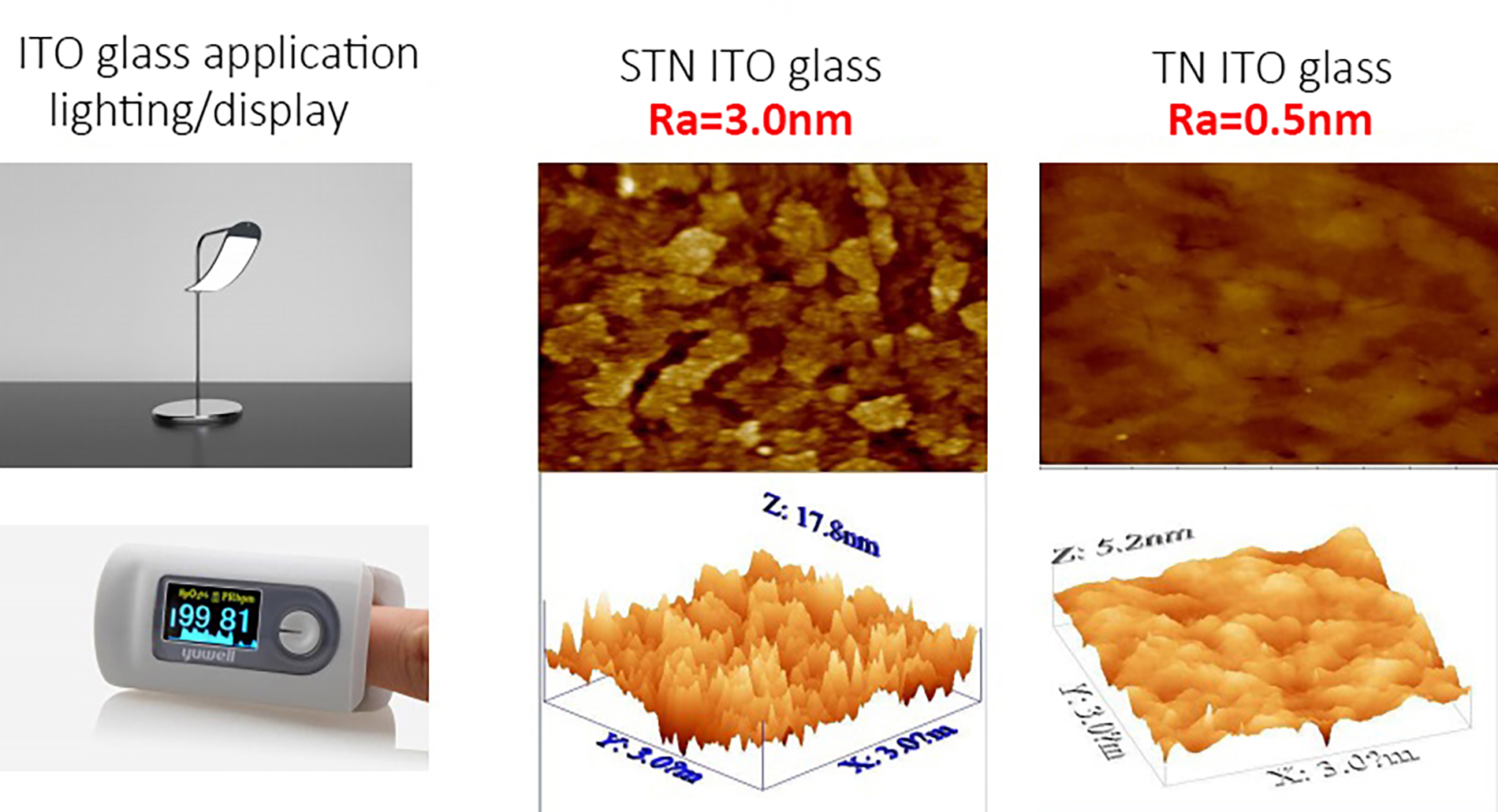

ITO Glass Type

TN ITO Glass normally used for white & black display
STN ITO Glass normally used for colored display

4-TN&STN-1

Optional for ITO Glass

ITO

BusBar Types

Copper - by electroplated, durable, anti-corrosion
Silver - by electroplated, durable, anti-corrosion
Silver epoxy - by printed, economical
Silver frit - by printed, durable, high adhesion
7-ITO glass with AR coating

AR Coating

One side AR coating - increase 2~3% transmittance at visible light
Tow side AR coating - increase 3~6% transmittance at visible light
8-ITO & IMITO

Index Matched

By adding high refractive layers, to make the reflectivity of ITO and no ITO area consistent, so to achieve the effect of extinction
9-ITO pattern glass-2

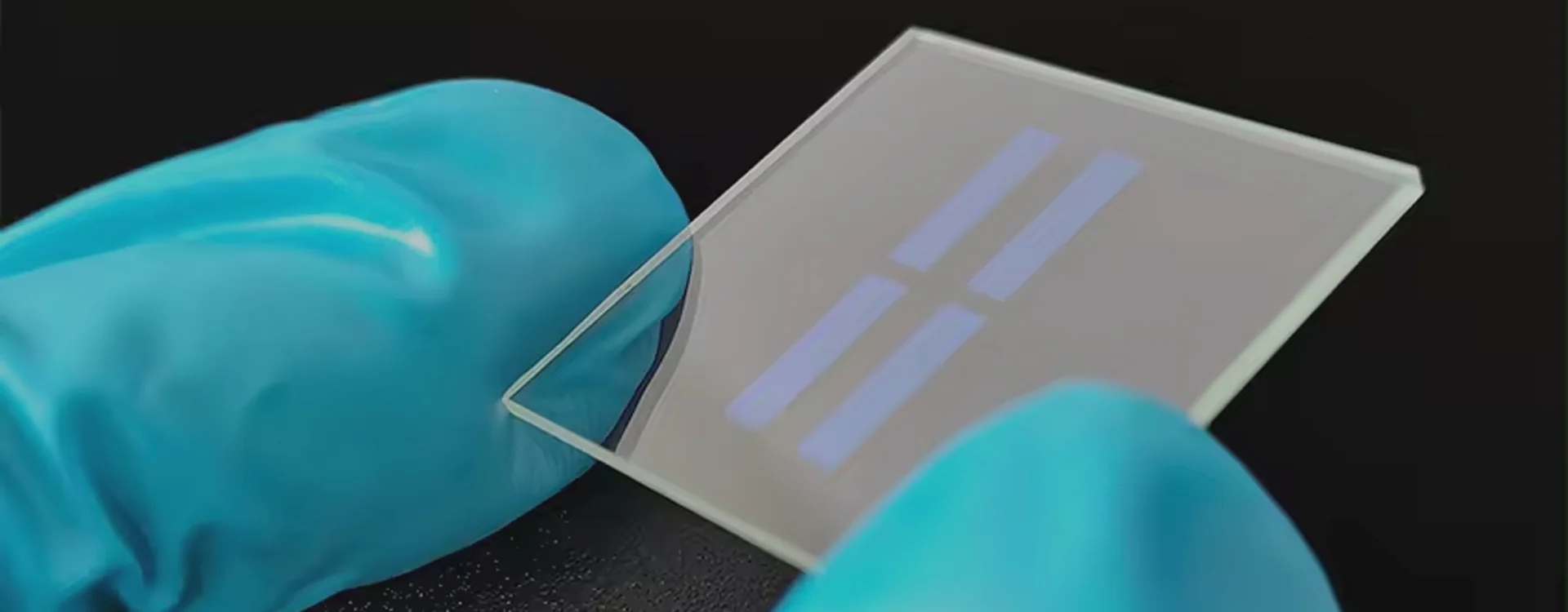

Patterned

Saida Glass able to make the pattern accuracy tolerance within ±3um
