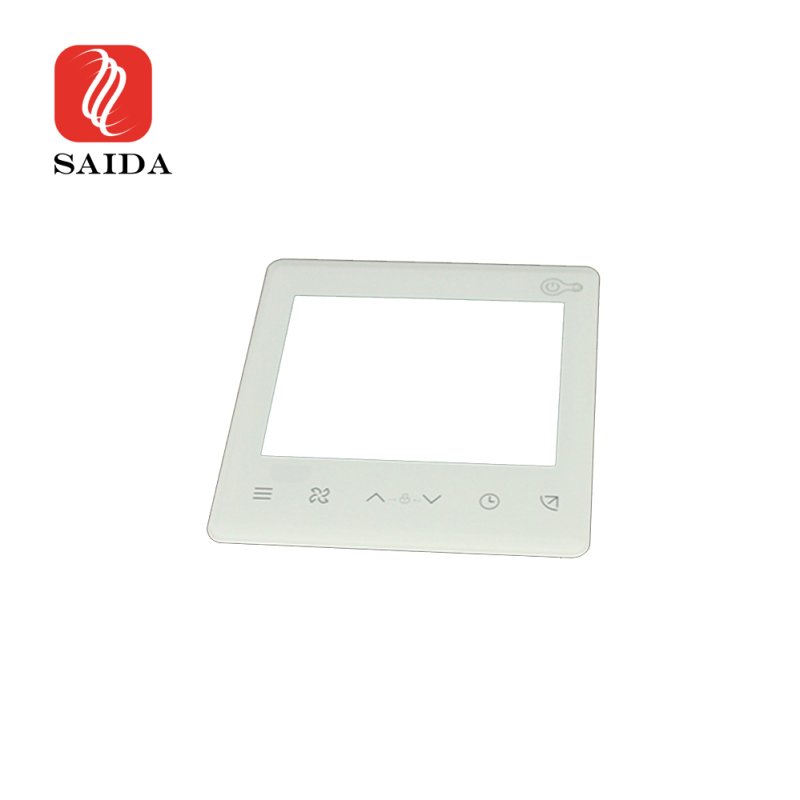

Cover glass for smart touch switch

Cover glass, a protective material enables switches a luxury and unique looking. With the growing development of science and technology, glass switches are widely used in lighting, smart home automation, and electronic products etc. , and typically tempered glass always is one of the most popular material option.

Product Advantages

High Toughness

Increase its strength by 3 to 5 times compared to ordinary glass, making it more durable.

Safety

For accidentally breakage, tempered glass dices into small pieces with non-sharp edges, thereby reducing the risk of causing injury to human.

Wear Resistance

The smoother and harder surface of tempered glass makes it less susceptible to scratches.

Impact Resistance

Tempered glass , meeting at least IK07 rating, can withstand greater impacts and is less likely to be broken under stress.

Ease of Cleaning

Smooth surface can resist external dust accumulation and stains, easy to be clean.

Water and flame resistance

Safe to be used in bathroom or application related to electricity.

Why We Use Tempered Glass to
Make Smart Touch Switch?

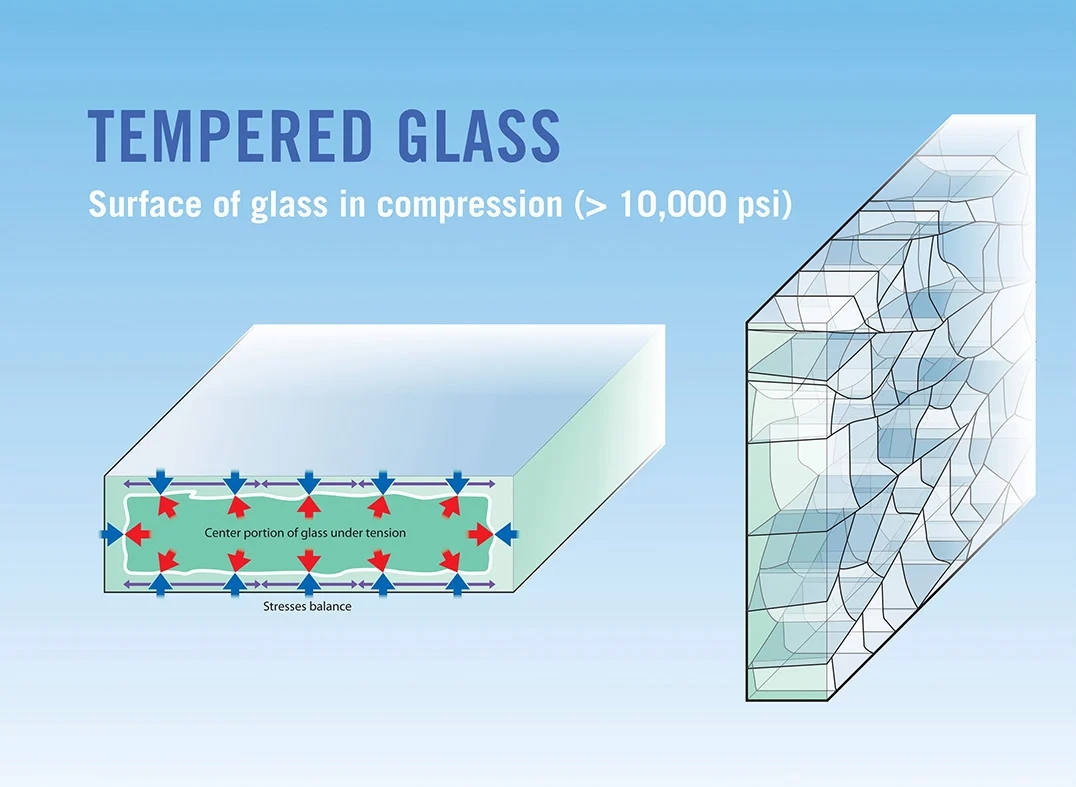

As we all know that, tempered glass is generally more costly than ordinary glass; however, it undergoes a thermal treatment during the production process which can significantly improve its strength. This makes tempered glass not only harder but also more durable than ordinary glass, diced into small pieces when broken, ensuring both safety and longevity while providing a modern and sophisticated aesthetic for switch.

Applied to a variety of Control System Panel in the Commercial Place, Hotel, Office, etc.

Special Processes

1. High temperature ink, strong durability, never discolor and peel off

2. Surface treatment: AF coating, anti-fouling and anti fingerprint

3. Surface treatment: frosted effect, high-end texture

4. Concave buttons: excellent feeling

5. 2.5D edge, smooth lines

Item	Description
Raw Material	Clear & ultra clear glass
Size	Customized
Thickness	Generally 0.5~6mm, according to design
Edge available	seams, corner dubbing, circle or flat ground, pencil, and polished etc
Structure	solid, holes etc.
Printing	silk screen printing, ceramic printing, digital printing
Surface Treatment	AR/AG/AF coating, tinted color ...

1.Do Saida Glass's certifications qualify tempered glass for import into the EU and US?

Answer:Yes — all tempered-glass comply with EN 12150 (EU) , ASTM C1048 (USA), AS/NZS 2208 (Australia) and CAN/CGSB-12.1-M90 (Canada), backed by ISO 9001:2015, ISO 14001:2015. Under EN 12150-1, a 50 mm × 50 mm break test square must yield 40–60 uniform small fragments, and fully tempered glass carries a surface compressive stress of at least 69 MPa; ASTM C1048 sets the same 69 MPa minimum surface compression for fully tempered glass. Saida's 100% full visual inspection plus random dimensional sampling supports the test reports EU/US customs and end customers ask for.
2.What thickness range and dimensional tolerances can Saida process?

We process glass from 0.2 mm to 19 mm thick, hold a dimensional tolerance of ±0.1 mm to ±0.5 mm depending on thickness and process, and handle a maximum panel size of 86’’. Ultra-thin 0.2–1.8 mm work (smartwatch covers, camera lenses, miniature touch panels) runs on dedicated furnaces with the flatness control display-grade glass requires; 2–3 mm is the standard consumer-electronics band, 4–6 mm suits industrial HMI/ATM panels, and 8–19 mm covers furniture, shower and railing glass.
3.Is all cutting, drilling and edge work done before tempering, and do you have the full CNC suite in-house?

Yes — every mechanical process is completed in-house before tempering, because post-temper cutting would cause instant spontaneous breakage. Saida runs precision CNC cutting with tolerance ≤ ±0.1 mm, special-shaped drilling, irregular notching, and edge finishing in flat, round, pencil, bevel and step profiles, all prior to the tempering furnace. This end-to-end pre-process capability is the single most important thing to confirm with any tempered-glass supplier, and it is fully covered here.
4.What mechanical strength can we expect from Saida tempered glass?

Tempered panels deliver roughly 4–5× the strength of annealed float glass of the same thickness: tensile strength 120–200 MPa, compressive strength above 600 MPa, and thermal shock resistance up to a 200 °C sudden temperature change. The dominant reason to specify tempered glass is the failure mode: on breakage it crumbles into small, rounded, blunt fragments rather than sharp splinters, which is why it is the required safety material for any human-contact application.
5.Which surface treatments and printing does Saida offer?

AR (anti-reflective), AG (anti-glare), AF/AS (anti-fingerprint/anti-smudge), mirror, ITO/FTO conductive coating and EMI-shielding bonding, plus standard silkscreen and ceramic DIPtech printing.
6.What is Saida's production capacity and typical lead time?

Annual capacity is 30,000,000+ pieces across 10+ automated and semi-automated lines, with a standard lead time of 15-20 days and flexible EXW, FOB, CIF or DDP shipping.
7.Can Saida work as an OEM/ODM partner and share QC documentation?

Yes — OEM and ODM are the core business model, and Saida provides spec sheets, original inspection test data and break-test records on request.
8.Which markets does Saida already serve?

Primary export markets are North America, Europe, Oceania and Asia, with a service network in 30+ countries.

Contact us

Usages

Climate Control

Curtain Control Switch

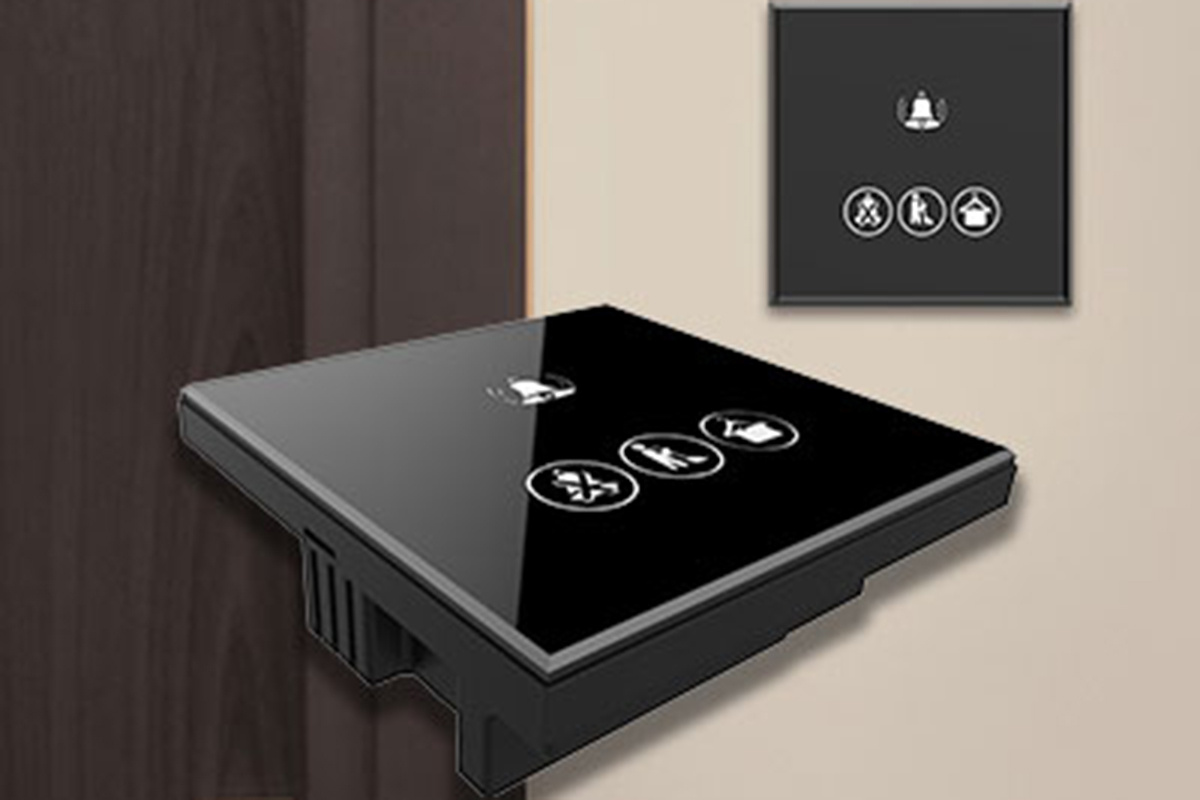

Doorbell

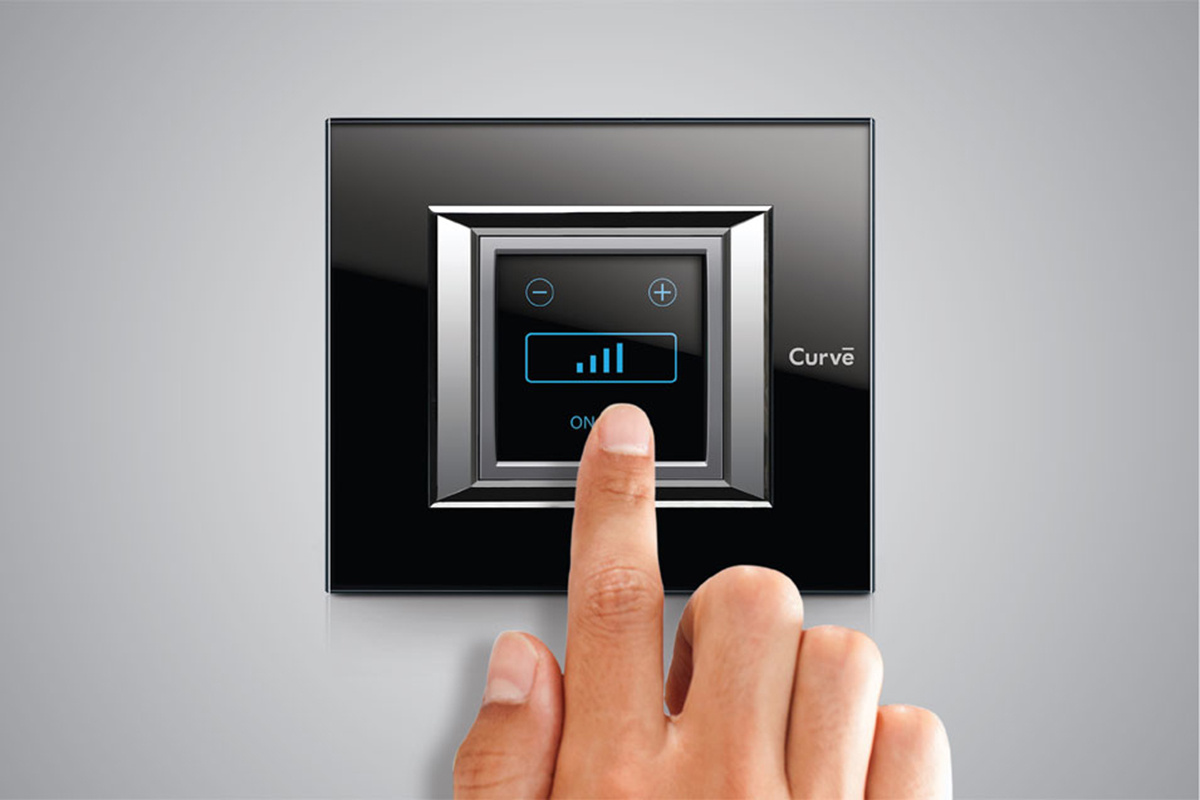

Light Switch

Other Application

Saida Glass engages in close cooperation with you, aiming to fathom your market difficulties and project requisites. Our strength in customized glass, spanning thin film optical coatings and manufacturing, renders us distinctive within the industry.
