Cover Glass for Outdoor Displays

Cover glass is a critical component in outdoor displays, providing protection, durability, and optical clarity for screens exposed to harsh environmental conditions. It serves as the outermost layer, shielding the display panel from physical damage, weather elements, and other external factors while ensuring optimal visibility and image quality. Below are some key aspects of cover glass used in outdoor displays:

1. Key Functions of Cover Glass in Outdoor Displays

Protection: Protects the display panel from physical impacts, scratches, vandalism, and environmental hazards such as rain, dust, and UV radiation.

Durability: Withstands extreme temperatures, humidity, and weather conditions to ensure long-term performance.

Optical Clarity: Maintains high transparency and minimizes reflections to deliver clear and vibrant images.

Anti-Glare and Anti-Reflection: Enhances visibility in bright outdoor environments by reducing glare and reflections.

Easy Maintenance: Often coated with hydrophobic or oleophobic layers to repel water, oil, and fingerprints, making cleaning easier.

2. Material Properties

Outdoor display cover glass is typically made from high-performance materials such as:

Chemically Strengthened Glass: Treated through an ion exchange process to enhance strength and durability.

Tempered Glass: Heat-treated to improve impact resistance and safety.

Specialty Glasses: Such as Corning Gorilla Glass or other branded solutions, which offer superior strength, scratch resistance, and optical performance.

3. Key Parameters:

Thickness: 1.0mm - 6.0mm (depending on size and application)

Surface Hardness: ≥7H (pencil hardness)

Transmittance: >90%

Impact Resistance: Withstands impact from steel ball of specific weight and drop height.

Temperature Resistance: -40°C to +85°C (operating temperature)

UV Resistance: No significant yellowing or transmittance change after UV exposure.

4.Manufacturing Processes

The production of cover glass for outdoor displays involves several precision processes:

Cutting: Glass is cut to the required size and shape for the display.

Edge Grinding: Edges are smoothed to ensure safety and aesthetics.

Chemical Strengthening: Enhances the glass's strength and durability through ion exchange.

Coating: Functional coatings (e.g., AR, AG, anti-scratch) are applied to improve performance.

Cleaning: Ultrasonic cleaning removes contaminants before assembly.

5.Additional processing:

Optical Bonding: Reduces reflection and enhances image quality by bonding the glass directly to the display panel.

Touch Functionality: Capacitive touch technology integration for interactive displays.

6. Considerations for Selection

When choosing cover glass for outdoor displays, consider the following factors:

Display Size and Resolution: Larger displays may require thicker or stronger glass.

Environmental Conditions: Harsher environments may demand higher durability and weather resistance.

Touch Functionality: For interactive displays, capacitive touch compatibility may be required.

Safety Standards: Ensure compliance with relevant safety and performance standards.

7. Applications

Cover glass is widely used in various outdoor display applications, including:

Digital Billboards

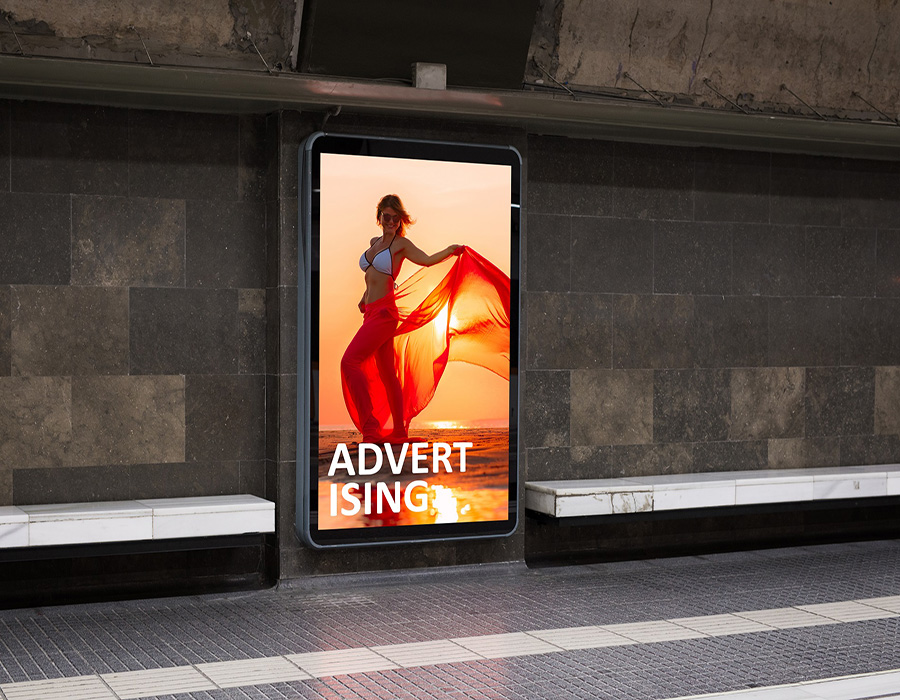

Cover Glass for Digital-Billboard-Best-Practices-1

Outdoor LED Displays

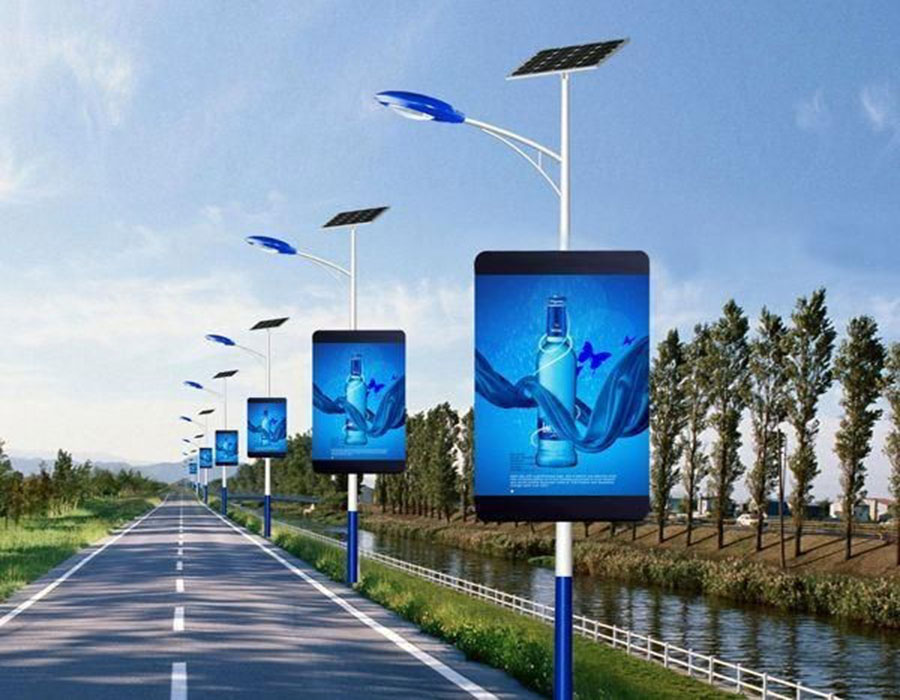

Cover Glass for Outdoor-Advertising-Led-Display-1

Transportation Displays (e.g., bus stops, train stations)

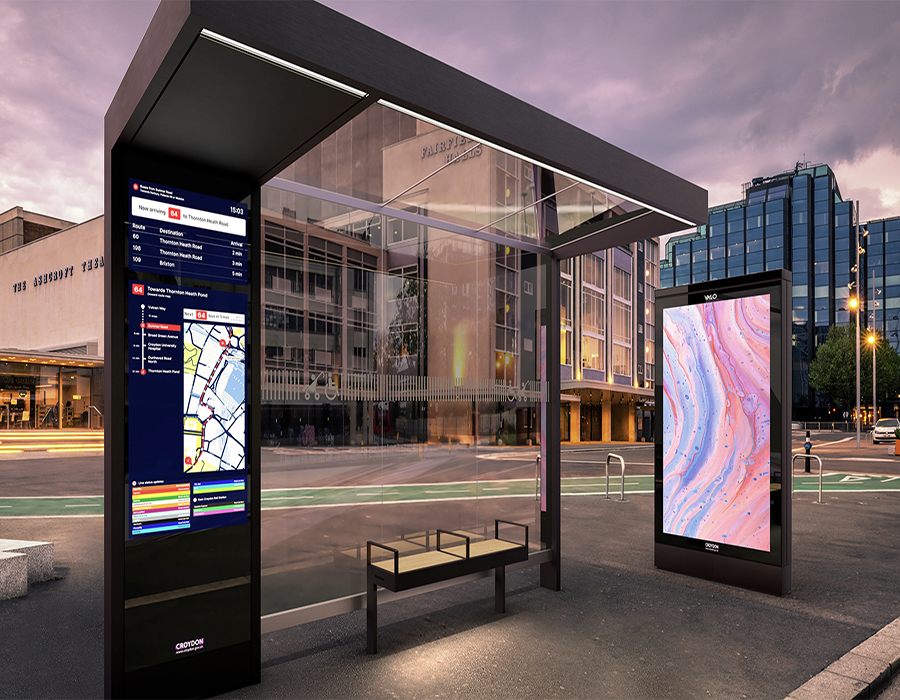

Cover Glass for Bus+Shelter+Digital+Signage-1

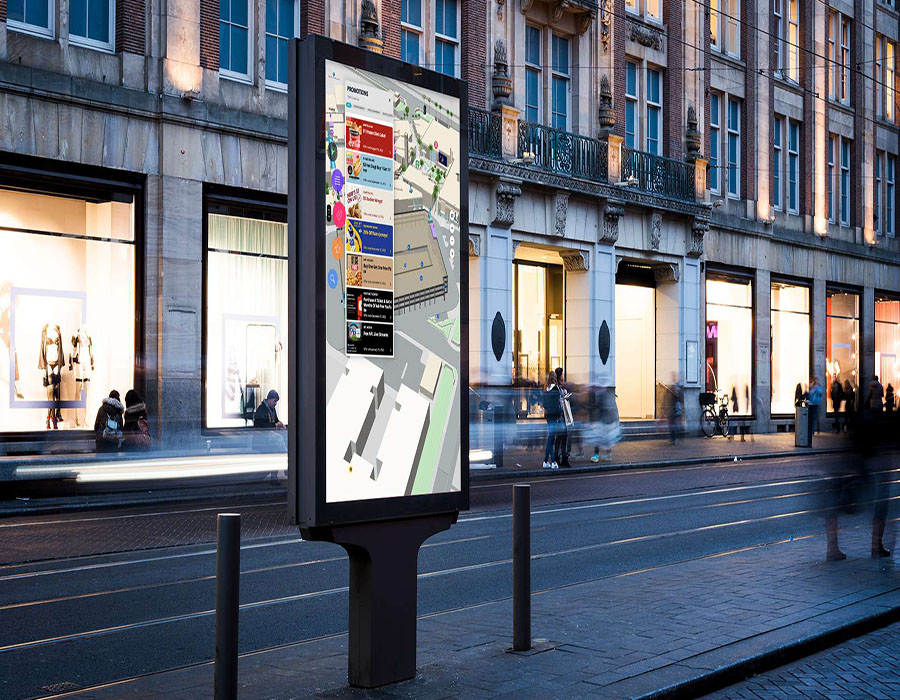

Interactive Kiosks

Public Information Displays

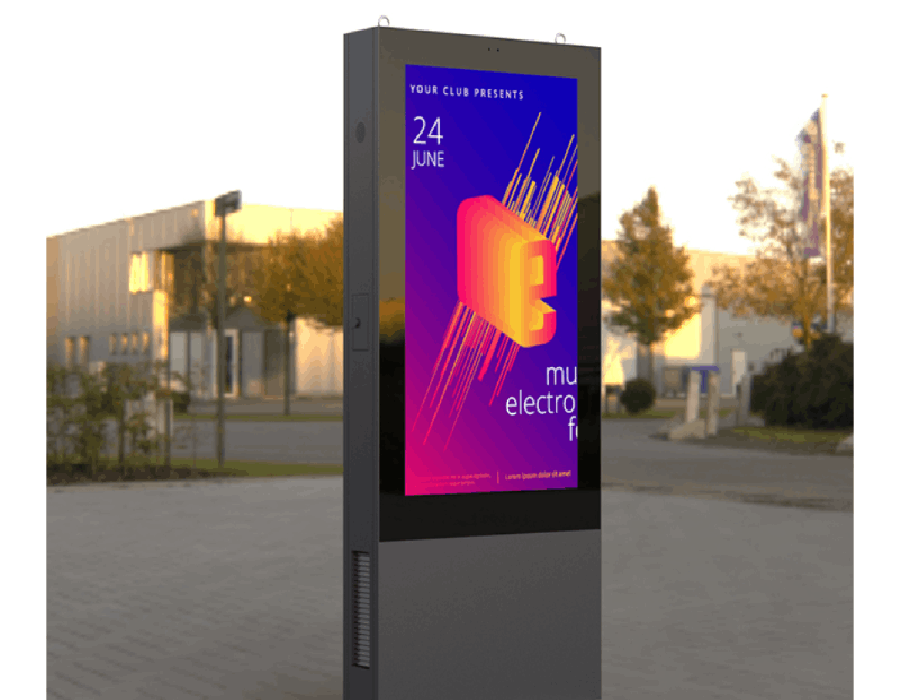

Cover Glass for Uniview-outdoor-information-kiosk-for-shopping-mall-1

Other Successful Cases

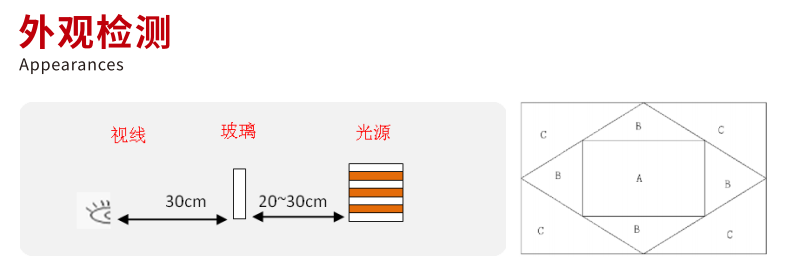

Quality Management

Packaging & Delivery

Certifications

Q1: How can I get the price and consult for product details?

A1: Send enquiry via Email, Whatsapp or Call us directly.
Q2: How is your quality of products and quality guarantee policy?

A2: 100% full test before shipping and 100% compliance with the request of clients.
Q3: What is the payment method?

A3: T/T, Western Union, LC, Paypal.
Q5: What package do you use for the products?

A5: Safe and standard packing for export shipment (PE film cover, kraft paper/bubble bags parcel, and pack into carton or wooden box).
Q6: What is your service?

A6: flat/curved glass customization including size, shape, printing, impact resistance ranking, surface treatment etc.For details, please kindly contact the sales persons.

Other Application

Saida Glass works in close collaboration with you, to understand your market challenges and your project needs. Our expertise in custom glass solutions in thin film optical coatings and technology and bulk manufacturing experience. Make us unique among this industry.
