Anti-Reflective, Anti-Glare, and Anti-Fingerprint Coatings for Cover Glass

1. Anti-Reflective (AR) Coating

Purpose:
Reduces surface reflections and increases light transmission, improving visibility and clarity, especially in high-glare environments.

Process Requirements:
Deposition Method: Typically applied using physical vapor deposition (PVD) or chemical vapor deposition (CVD).
Materials: Common materials include magnesium fluoride (MgF₂), silicon dioxide (SiO₂), and titanium dioxide (TiO₂)
Layer Structure: Multi-layer coatings (e.g., 3–7 layers) are used to achieve optimal performance across a wide range of wavelengths.

Key Parameters:
Thickness: Each layer is precisely controlled, typically ranging from 50–200 nm.
Reflectance: Reduces surface reflectance to <1% (compared to ~4% for uncoated glass).
Durability: Must withstand environmental factors like humidity, temperature changes, and UV exposure.

Effects:
Improved Visibility: Reduces glare and reflections, making screens easier to read in bright light.
Enhanced Aesthetics: Provides a clear, high-transparency appearance.
Increased Light Transmission: Improves display brightness and energy efficiency.

2. Anti-Glare (AG) Coating

Purpose:

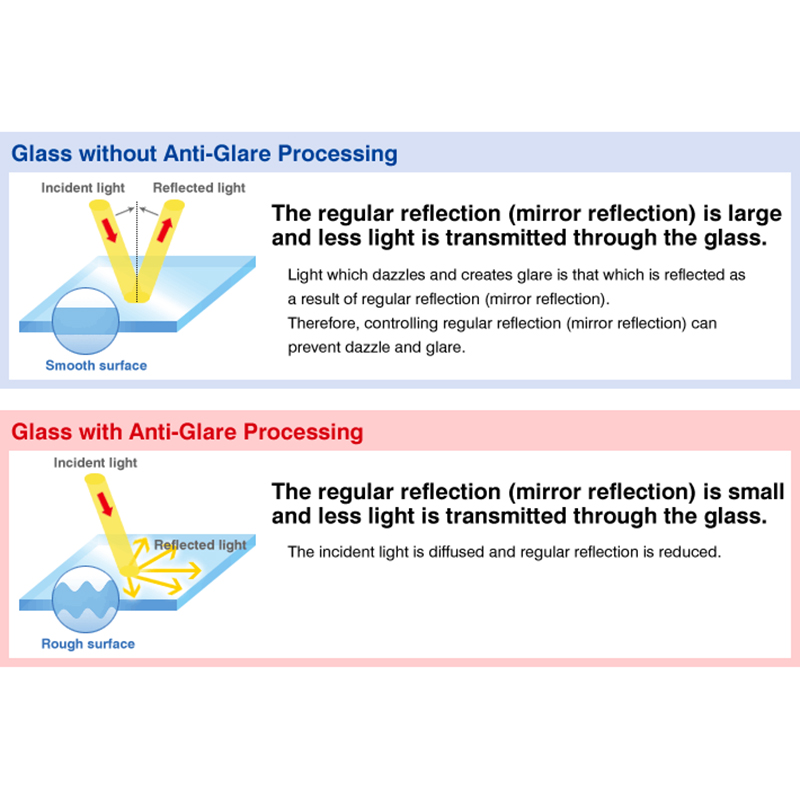

Diffuses reflected light to reduce glare and improve readability under direct lighting conditions.

Process Requirements:
Surface Treatment: Achieved through chemical etching or mechanical abrasion to create a micro-rough surface.
Materials: Often combined with silica-based particles or sol-gel coatings.
Application Method: Spray coating, dip coating, or spin coating.

Key Parameters:
Surface Roughness: Typically ranges from 0.1–1.0 µm to scatter light effectively.

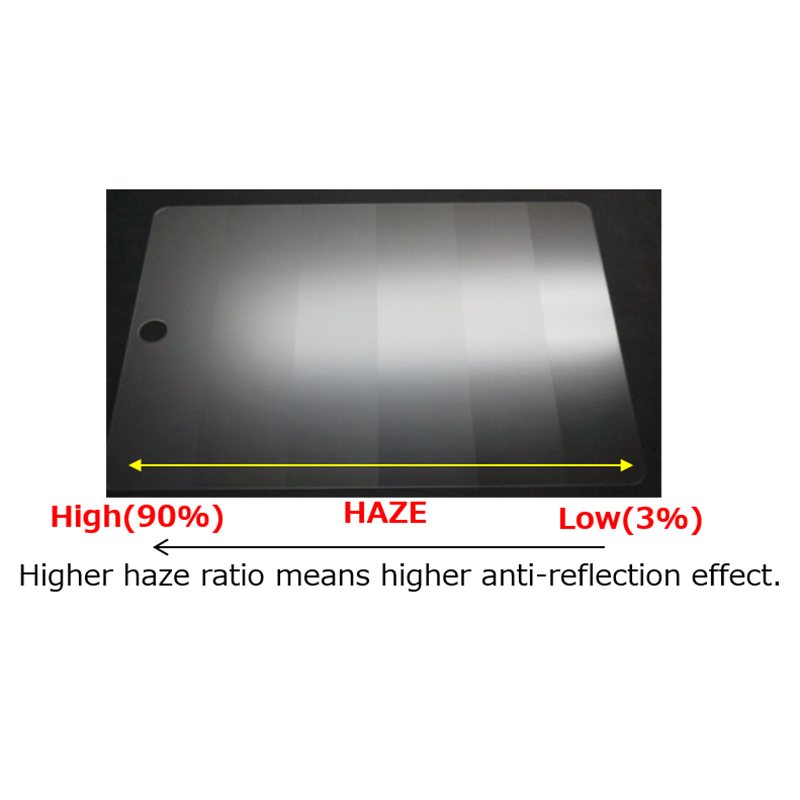

Haze Level: Controlled to achieve 10–20% haze for optimal glare reduction without compromising clarity.
Durability: Must resist abrasion and cleaning agents.

Effects:
Glare Reduction: Minimizes distracting reflections, improving readability in bright environments.
Matte Finish: Provides a non-reflective, matte appearance.
Enhanced Usability: Ideal for touchscreens and displays in outdoor or high-light settings.

3. Anti-Fingerprint (AF) Coating

Purpose:
Repels oils and fingerprints, making the surface easier to clean and maintaining a pristine appearance.

Process Requirements:
Coating Method: Applied using spray coating, dip coating, or vacuum deposition.
Materials: Typically fluorinated silanes or oleophobic coatings.
Curing: Requires UV curing or thermal curing to bond the coating to the glass surface.

Key Parameters:
Contact Angle: Achieves a high water contact angle (>110°) and oil contact angle (>70°) to repel liquids.
Thickness: Typically 10–50 nm for optimal performance.
Durability: Must withstand repeated cleaning and wear.

Effects:

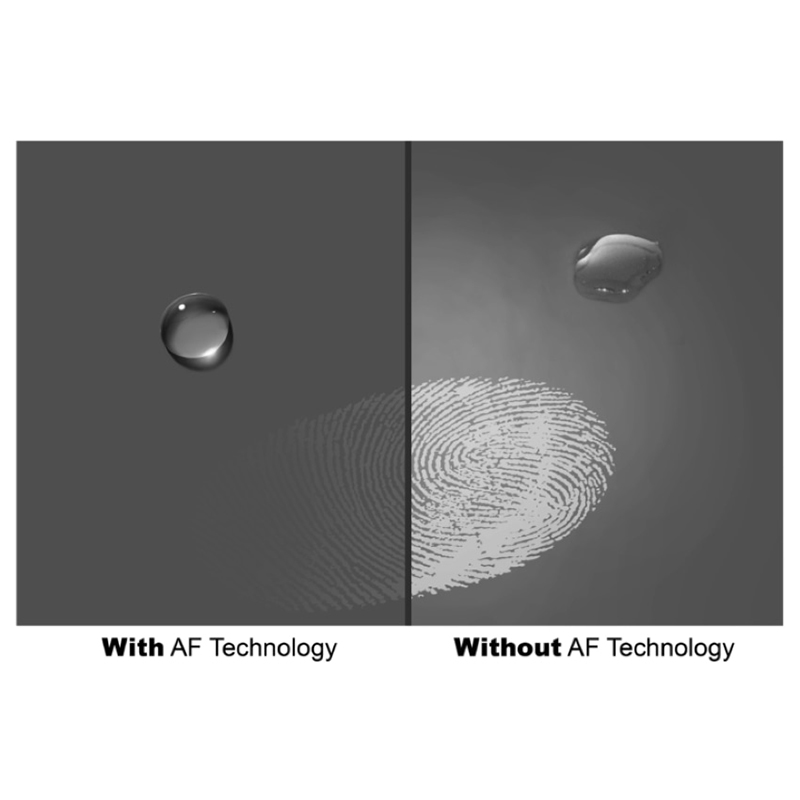

Fingerprint Resistance: Reduces the visibility of fingerprints and smudges.
Easy Cleaning: Makes the surface easier to wipe clean.
Improved Aesthetics: Maintains a clean, professional appearance.

Combined Coatings

In many applications, AR, AG, and AF coatings are combined to provide comprehensive performance benefits. For example:

AR + AG: Reduces reflections while diffusing glare for outdoor displays.

AR + AF: Enhances clarity and repels fingerprints for consumer electronics.

AG + AF: Provides glare reduction and easy cleaning for touchscreens.

Process Integration and Quality Control

Surface Preparation: The glass surface must be thoroughly cleaned and treated to ensure proper adhesion of the coatings.

Coating Application: Precise control of deposition parameters (e.g., temperature, pressure, and coating thickness) is critical.

Curing and Bonding: Proper curing ensures durability and long-term performance.

Testing and Inspection: Coatings are tested for:

Optical Performance: Reflectance, haze, and light transmission.

Durability: Scratch resistance, adhesion, and environmental stability.

Functional Properties: Fingerprint resistance and ease of cleaning.

Applications

Consumer Electronics: Smartphones, tablets, laptops, and wearables.

Automotive: Touchscreens, infotainment systems, and heads-up displays.

Industrial: Control panels, medical devices, and outdoor displays.
